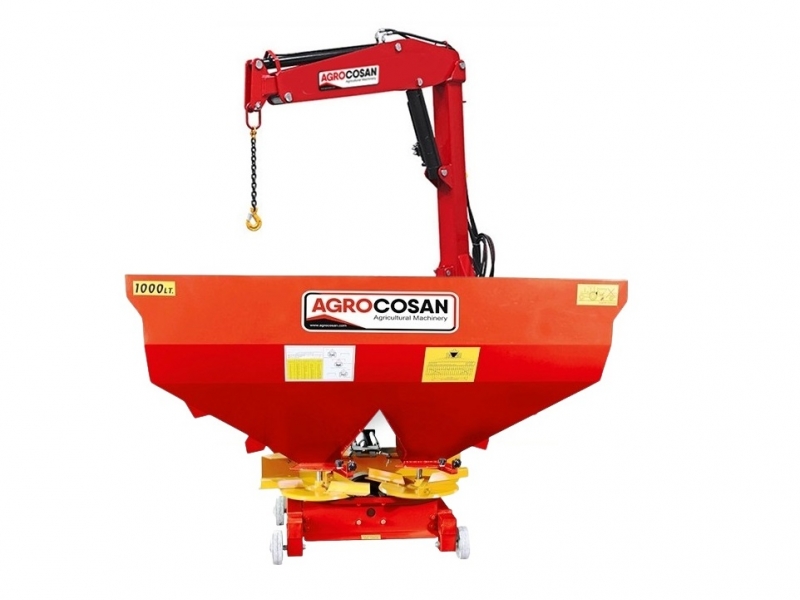

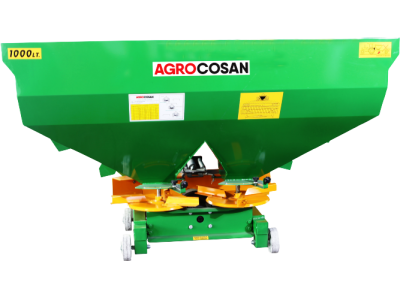

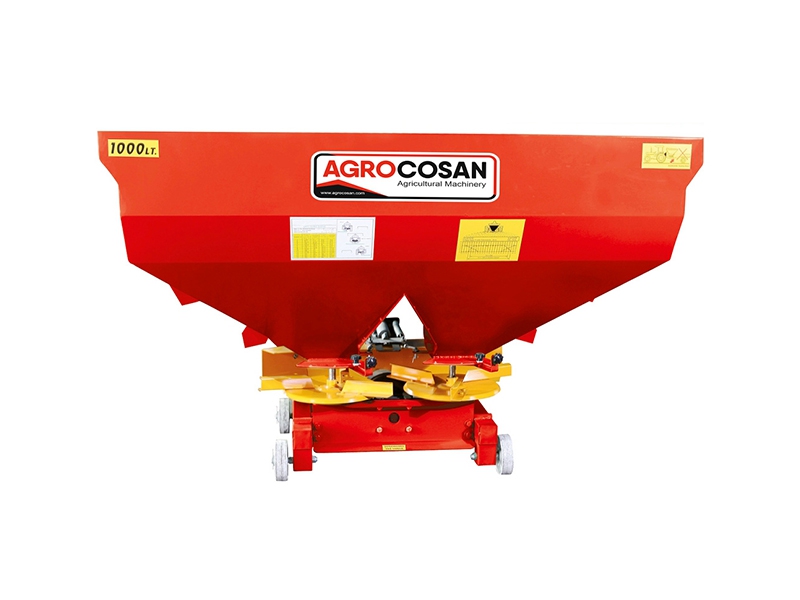

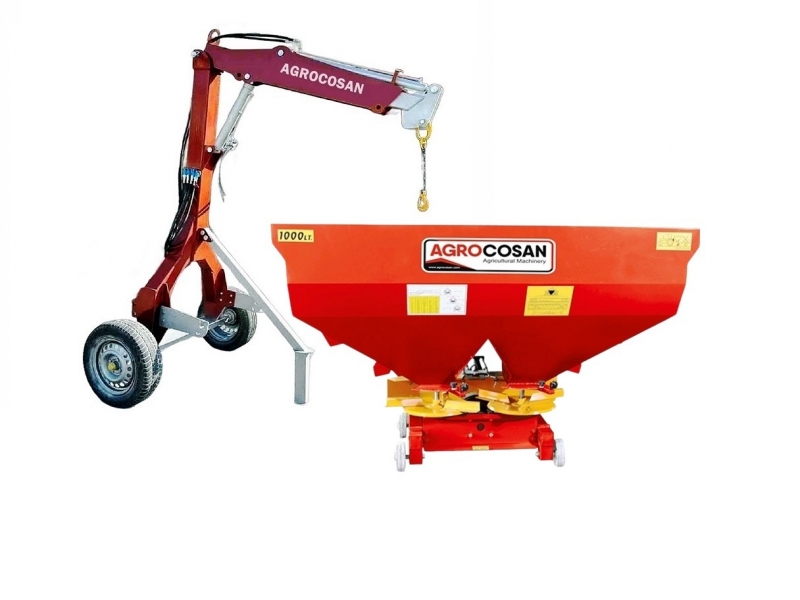

Classic Fertilizer Spreader Double Disc CFSD

  • Fertilizer spreaders can be used in farms, fields and gardens.
  • Fertilizer capacity in single disc: 380, 500 and 600 liters and double disc: 500, 600, 800 and 1000,1200,1500,1800,2000 liters.
  • Fertilizer spreaders mounted to the Tractors through three point linkage system.
  • It is powered by throughout a rod by tractor PTO and linked up by spreader discs and smashers in the tank.
  • With the action of the output rods the discs turns and the fertilizer are spreading by the discs.
  • The Smashers duty is to avoid the fertilizer to become lump and flowing continually.
  • It spreads fertilizer to furthest point in balance with the wings.
  • It spreads to the left, to the right, or sides.
  • Through specially designed The outlet holes are provided on both sides equal fertilization.
  • Spreading degree can be easily adjusted by means of the mechanical lever and hydraulic lift.
  • Hydraulic setting system by means of the tractor can be optionally set by the amount of fertilizer.
Classic Fertilizer Spreader Double Disc CFSD
Classic Fertilizer Spreader Double Disc CFSD
  Units CFS 380 CFS 500 CFS 600 CFSD 500 CFSD 600 CFSD 800 CFSD 1000
Number of Discs pcs 1 1 1 2 2 2 2
Hopper Capacity lt 380 500 600 500 600 800 1000
Total Width cm 103 106 112 111 111 111 117
Working Width m 18 18 18 24 24 24 24
Total Length cm 114 140 148 170 170 170 180
Total Height cm 111 120 120 120 120 120 121
P.T.O r/m 540 540 540 540 540 540 540
Weight kg 120 135 140 195 200 205 210
Open/Close adjustment   mechanic hydraulic mechanic hydraulic mechanic hydraulic mechanic hydraulic mechanic hydraulic mechanic hydraulic mechanic
Stainless stell disc & wing kg optional optional optional optional optional optional optional
