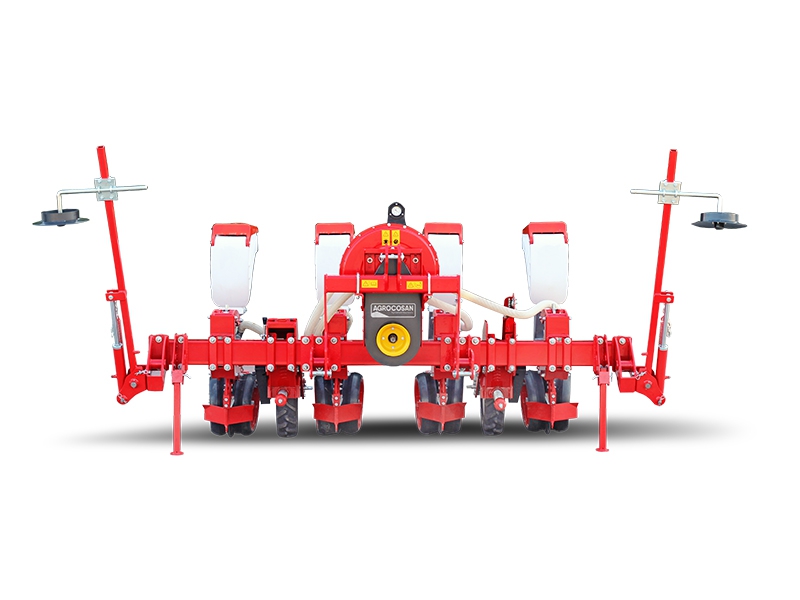

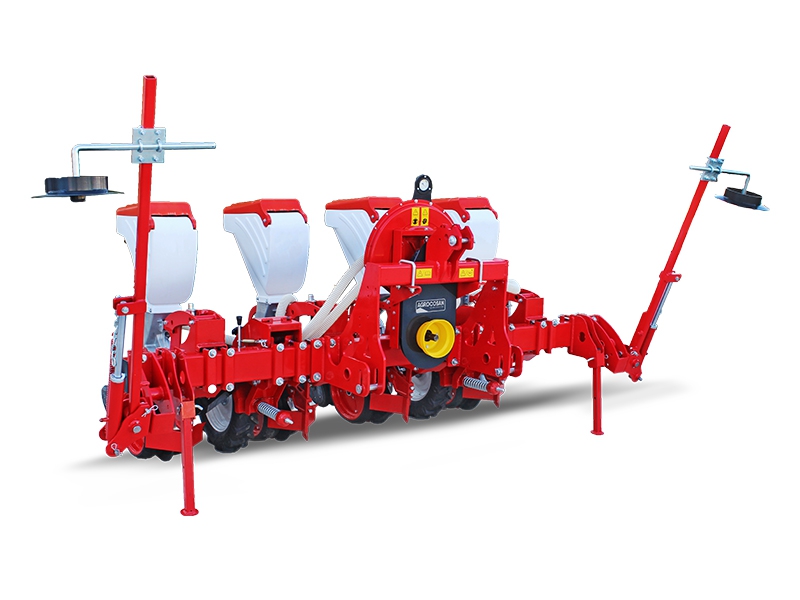

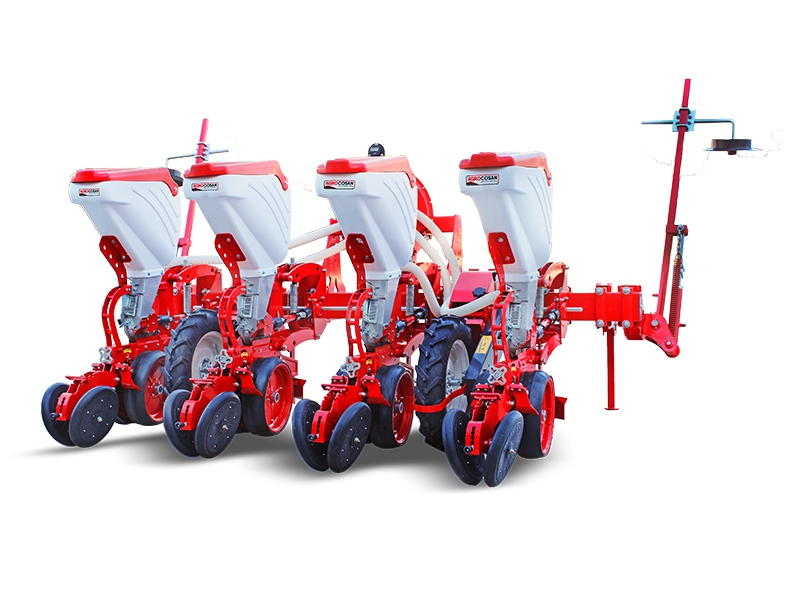

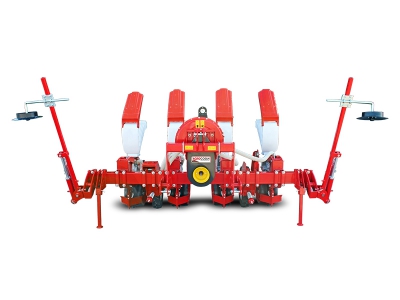

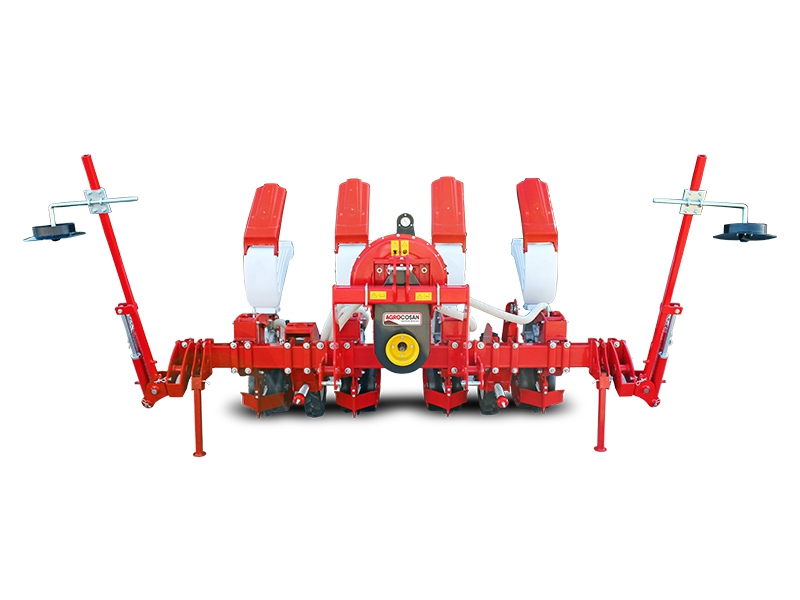

Pneumatic Precision Seed Drill Disc Type Without Fertilizer Tank CPS-D

  • It is a machine for sensitive seeding for sugar beets, sunflower, corn, spinach, soya, tomato, peas, cotton, water melon, onion, sugar melon, pumpkin at the requested sowing distances and on the requested row and intervals. It can be manufactured as 4, 5, 6 and 8 rows as per the request.
  • The aspirator is hanged to the three-point hanging system and gets its drive from the tail-shaft.All of the sowing units are connected on the chassis via parallelogram system. On the front part of the each sowing unit is an adjustable soil scraper. The sowing legs are manufactured at the Disc type. The pressure wheels are existed right behind the units.
  • The marker system is also available on the both sides of the machine.The marker operates automatically or with lift over the three-point hanging system.
  • The drive is transmitted over the right wheel via the gear-box group gears to the shaft; then to the units by means of shaft system existed on every units.
  • Pneumatic seeder provides a sensitive sowing since it transfers the motion activity generated by the wheels, to the seeder units with the help of shaft allowing easy adjustment of over row distance.
  • Thanks to these specifications, it allows sowing on all kinds of soil conditions and dropping fertilizer and seed into the equal depth.
  • Hydraulic Marker

    Axe Type Fertilizer Units

    2 Set Disc

  • Mixer For Fertilizer

    Cardan  Shaft

    500x15 - 6,5 / 80-15 Tires

    Traffic Set


  • Double Hydraulic Marker

    Microgranulator Tank

    Telescopic Chassis

    Elektronic Seed Monitor

    Elektronic Decarmeter

    Turbo Disc

    Seed Pressure Wheel

    Inox Fertilizer Tank

Pneumatic Precision Seed Drill Disc Type  Without Fertilizer Tank  CPS-D
Pneumatic Precision Seed Drill Disc Type  Without Fertilizer Tank  CPS-D
Number of Units pcs 4 5 6 8
Total Length cm 300 380 600
Total Height cm 160
Total Width cm 200
Distance Between Rows cm 25 x 90
Seed Capacity Lt 50x4 50x5 50x6 50x8
Fertilizer Box Capacity Lt   170x2 170x2 230x2 170x4
PTO rpm 540
Weigth Without Fertilizer Box kg 800 900 1050 1600
Weigth With Fertilizer kg 1000 1080 1230 2000
Tire Size inch 500x15 - 6,5 / 80-15
Tractor Power hp 70 80 90 100
