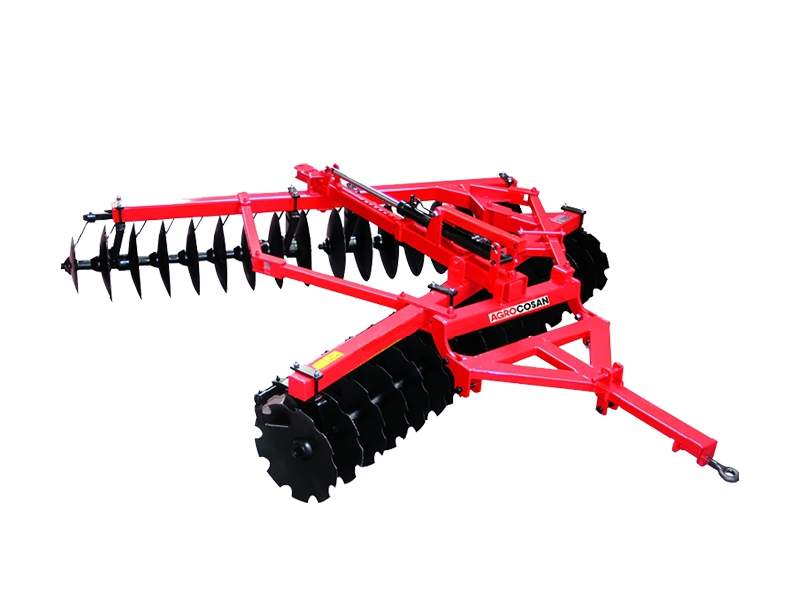

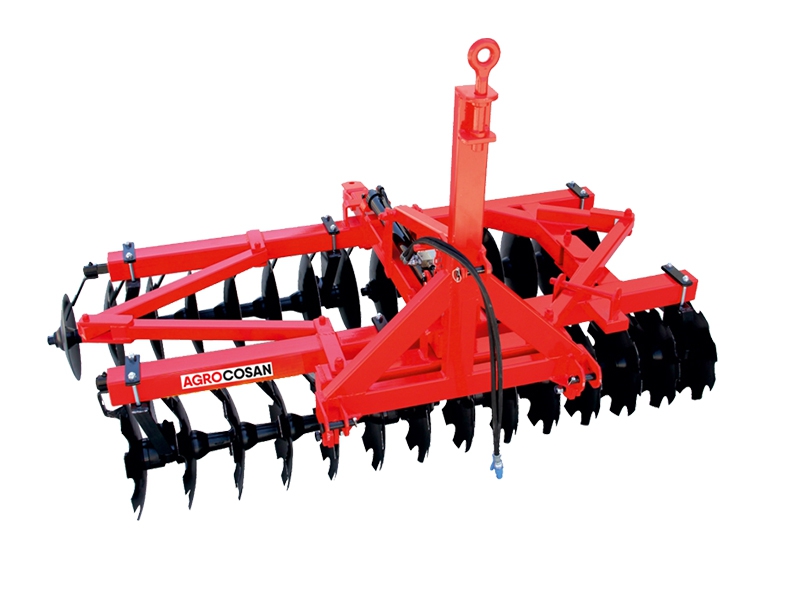

Offset Disc Harrow COD

  • The Implements of trailed and mounting types of disc harrows are mounted to the tractors by three point linkages. Additionaly, the user can also use it as trailed type. Disc harrows are made of steel square rods arranged in row with bearings.
  • High resistant, heat treated disc set frames are connected main frame. Used for scrapping pieces on the soil and stems of sunflower, wheat, rice, plant remnants wild grass.
  • And also to break the surface of the soil and mix the manure and chemical fertilizers with the soil.
  • Disc harrows are used either in cultivating vineyard, garden, fruit tree and olive tree fields or in cultivating plain fields.
  • Preferably used type in the fields of trees and vineyards is mounted type and in the plain fields, the trailed type is preferred.
Offset Disc Harrow COD
Offset Disc Harrow COD
  Units COD20 COD24 COD28 COD32 COD36 COD40
Number of Discs pcs 20 24 28 32 36 40
Disc Diameter mm 460X3,5
Distance Between Disc cm 18
Number of Beds on Crank pcs 8 12
Working Width cm 180 216 252 288 324 360
Total Width cm 223 258 293 328 363 398
Total Length cm 147
Total Height cm 205
Frame mm 100x80x5 100x100x6
Weight 460 mm Disc kg 610 660 710 765 935 985 1035
Weight 510 mm Disc kg 870 1050 1100 820 985 1040 1095
Tractor Power hp 50-55 55-60 60-70 70-80 80-90 90-100
