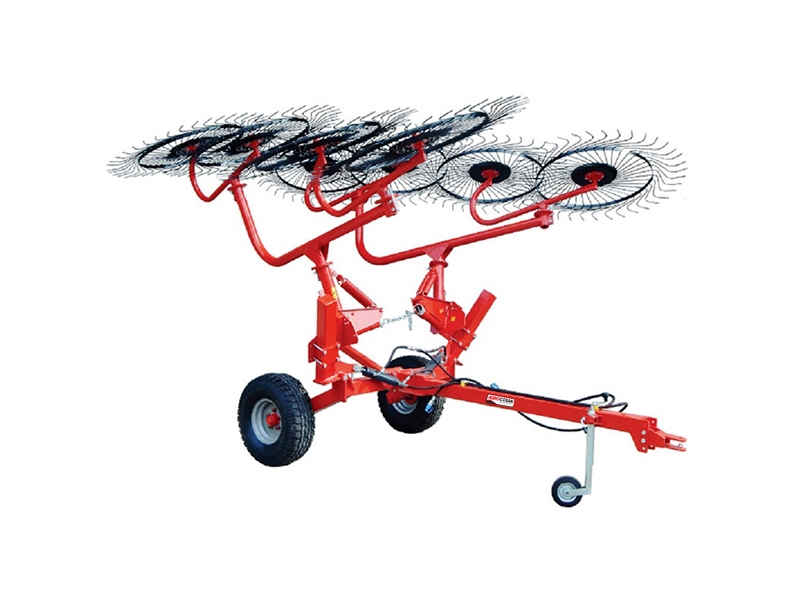

Trailed Hay Rake THR

  • Trailed type carted rake has two single rake frames operated by independent acting cylinders, which use tractor hydraulics to raise and lower the finger wheels from transport to field position.
  • The tyne shape and special steel used In manufacturing have been studied to give them the best flexibility. The final result is a fluffy windrow suitable to form an even and compact bale.
  • The two rate main frames, pivot and slide on the trolley frame giving you the possibility of setting the rake working width at your convenience, maintaining the optimum mdinanon in respect to the crop you are raking. The wide frame of the troley allows for maximum stability of the rake even in rough terrain.
  • Strong tubular steel frame, 40 special rteei springs per wheel, Twin hydraulic rams for lifting rake arms, Heavy-duty greasable bearings in each hub


Trailed Hay Rake THR
  Units THR-8 THR-10
Drum Pcs pcs 8 10
Spring Pcs pcs 320 400
Total Length cm 670 760
Total Width cm 300 300
Working Width cm 600 700
Weight kg 575 655
Tractor Power hp 25 25
