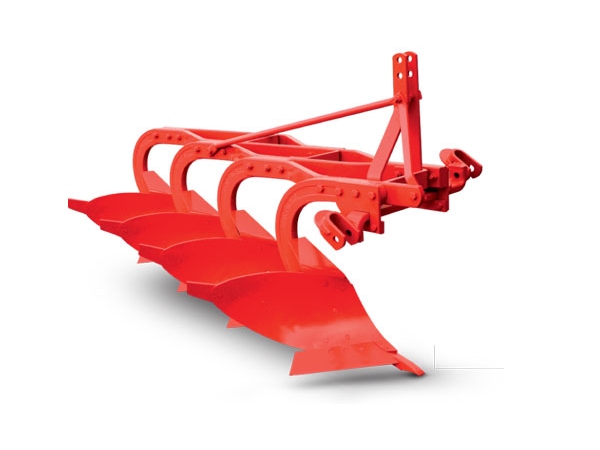

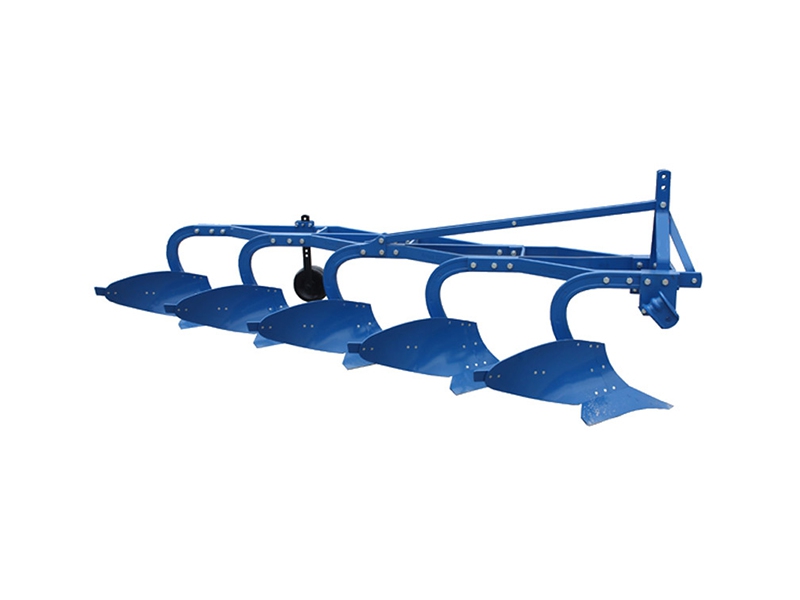

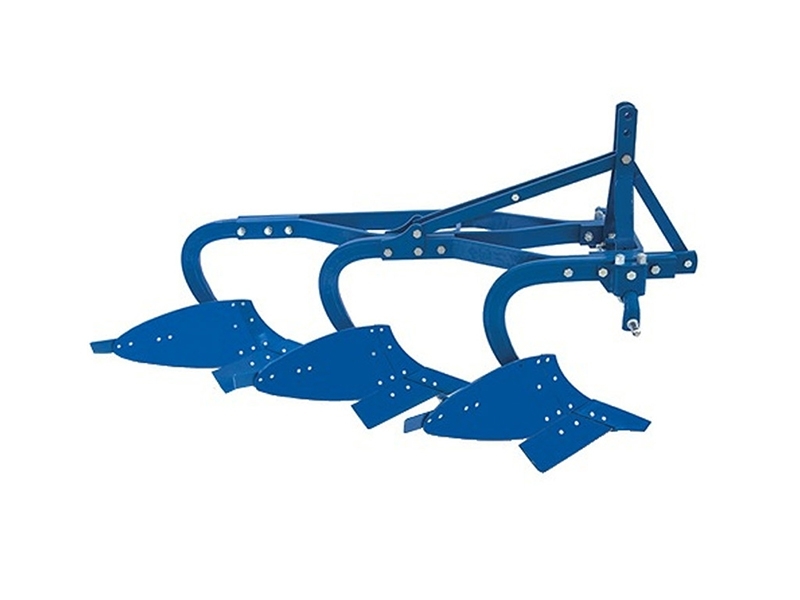

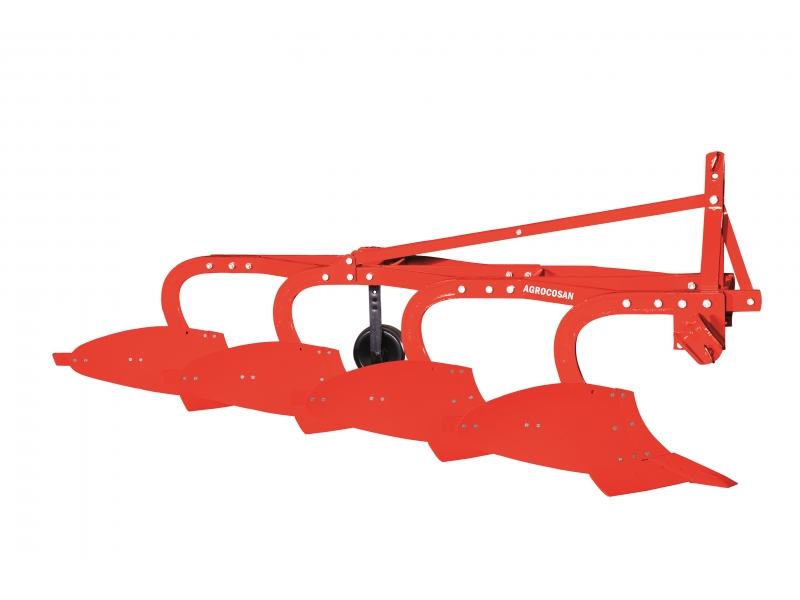

Classic Mouldboard Plough CMP

Classic Mouldboard Plough are manufactured in 2, 3,4,5 body. Chassis sizes: 85x25, 85x28 and 90x30 mm options. Body intervals: 60 and 85 cm options. Body Sizes: 10, 12, 14 and 16 inch options. The primary purpose of ploughing is to turn over the upper layer of the soil, bringing fresh nutrients to the surface, while burying weeds, the remains of previous crops, and both crop and weed seeds, allowing them to break down. It also provides a seed-free medium for planting an alternative crop. Balanced and smooth driving ability with its wheel, and its coulter options are some of the main features of our product. By safety system of the plough, being damaged rate is reduced at the lowest level.

	Units	CMP2	CMP3	CMP4	CMP5
Number of Bodies	pcs	2	3	4	5
Total Length	cm	182	256	329	403
Total Width	cm	110	123	160	196
Total Height	cm	127	127	127	127
Working Depth	cm	30-35	30-35	35-40	35-40
Working Width	cm	70	120	140	175
Space of Body	cm	35	35	35	35
Body Size	inch	14	14	14	14
Chassis Size	mm	85X28	85X28	85X28	85X28
Tractor Power	hp	60-65	65-75	80-90	100-120
Total Weight	kg	220	340	490	610
