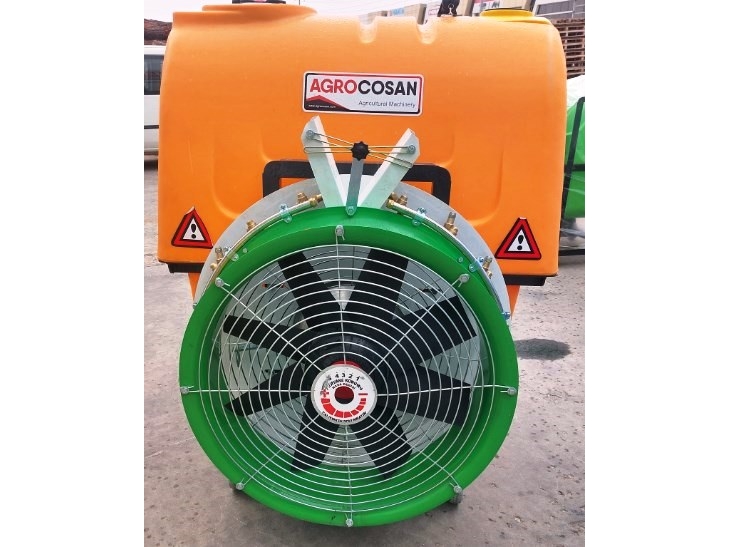

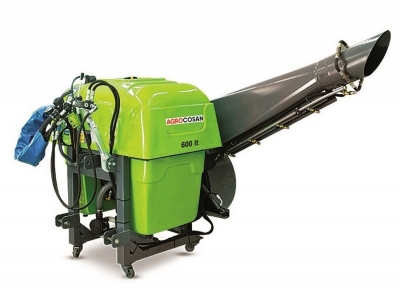

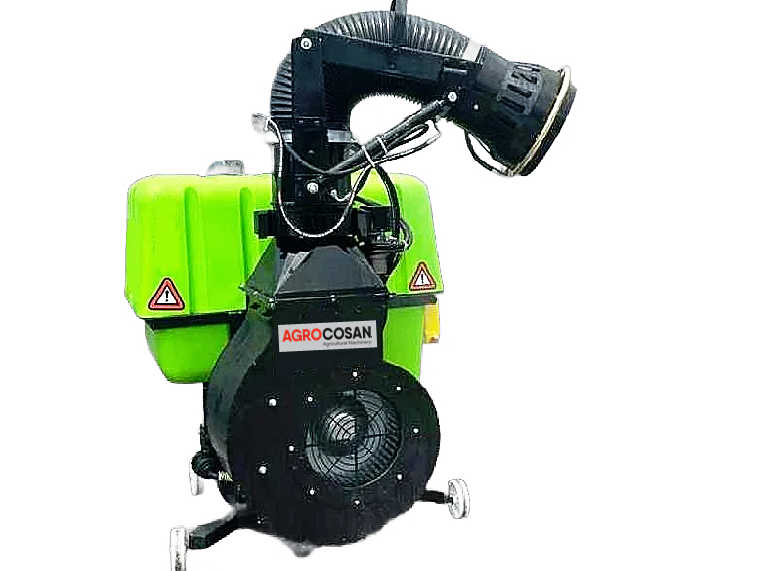

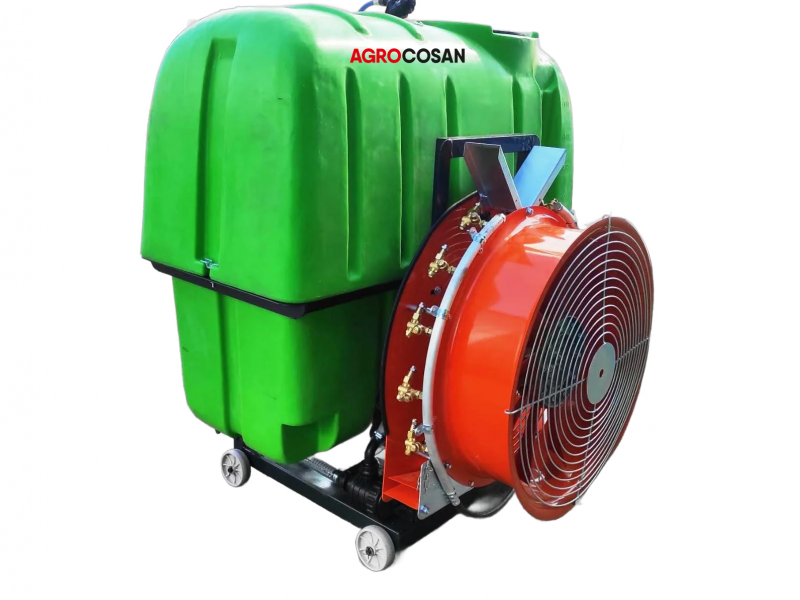

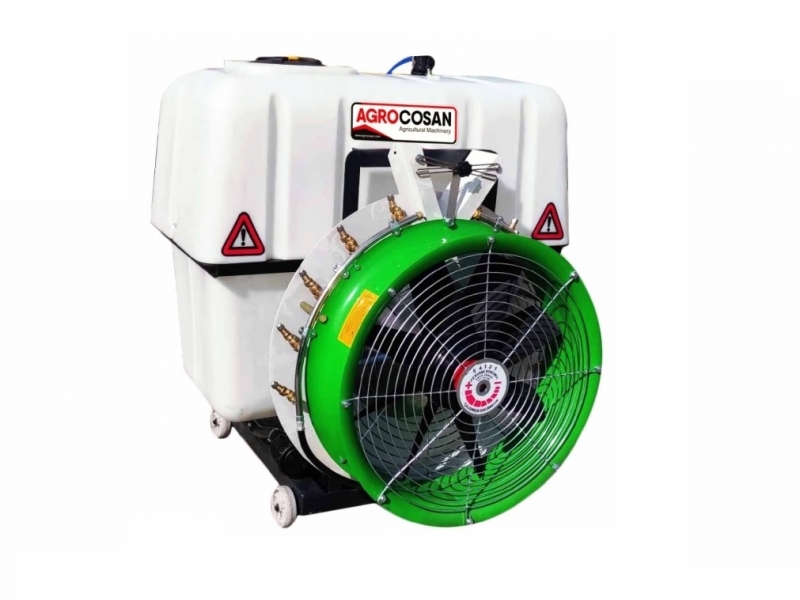

Mounted Turbo Atomizer MA

  • Turbo sprayers are used for vineyards, orchards and gardens. 400 and 600 It. models are tractor mounted on 3-pt hitch by PTO. Strengthened Fiberglas or Polyethylene depot options. Pump are operated by power takeoff from tractor conveys pressuring chemical liquid to nozzles on fan. Fan is also operated with power take off and it sends pressured air out. Pressured chemical liquid is sprayed by adjustable nozzles around the fan by air circulation and any kind of tree can be disinfected. Fans are operated by two speed transmission. With separator on the fan, the rotation of the impeller can be prevented. By setting the angle and direction or by changing the plaque the nozzle on the fan, spraying distance and amount can be adjusted. By setting the direction of the propeller fan, the air flow can be controlled. Using distributor valve on the regulator right, left or spraying is done in both directions. Turbo fan delivers an average shot distance.
  • Easily cleanable water fitler
  • Easily adjustable and usage
  • High efficiency
  • Pressure regulation
  • Level indicator on the tank
  • Clean water tank
Mounted Turbo Atomizer  MA
Mounted Turbo Atomizer  MA
Type MA 200 MA 400 MA 600 MA 800
Pump Model (I/min) C71 C71 C96 C96
Control Panel Latch Latch Latch Latch
Noozle Type Brass Brass Brass Brass
Noozle Piece 4+4 5+5 5+5 5+5
Width (cm) 113 113 132 149
Lenght (cm) 163 163 164 164
Height (cm) 142 142 150 157
Cool Diameter (cm) 60 60 60 60
Work Width(cm) 8 8 8 8
Required Power (BG) 50 50 50 50
Working Transfer (d/d) 540 540 540 540
Air Flow (m^3/h) 54000 54000 54000 54000
Weight (kg) 258 258 270 280
