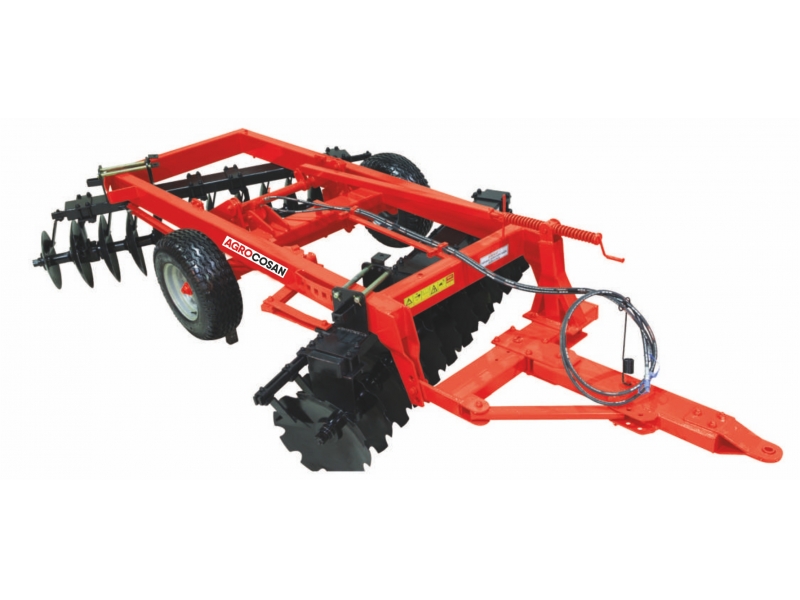

Goble Disc Harrow CGD

  •  It eases transport and operation in the divided field. During the operation in field, passing from mounting mode to movement mode is as simple as placing and removing the pin. Operation Fields: it provides an ease for breaking stubbles into pieces, preparing seed casing, scratching organic materials on the earth and challenging with excessively grown green grass especially in the climates with heavy rain. Used for scrapping pieces on the soil and stems of sunflower, wheat, rice, etc. It is easy to transport the machine from one field to another by assistance of hydraulic lifted wheels on the equipment. On the field, corner turnings become faster by the assistance of the hydraulic lifts operated the field, corner turnings become faster from tractor cabin. It is easy to adjust the working depth by the up and down movement of the wheels
Goble Disc Harrow  CGD
  Units CGD16 CGD18 CGD20 CGD22 CGD24 CGD26 CGD28 CGD30 CGD32 CGD34 CGD36
Number of Discs pcs 16 18 20 22 24 26 28 30 32 34 36
Disc Diameter mm 560x4,5
Distance Between Disc cm 22
Bed Numbers on Crank pcs 4 6 8 8 12
Working Width cm 176 198 220 242 264 286 308 330 352 374 396
Total Width cm 200 222 244 266 288 310 332 354 376 398 420
Total Length cm 520 527 562
Total Height cm 125
Chassis mm 100x100x6 100x150x6 100x200x6 100x200x8
Weight kg 1385 1485 1560 1660 1785 1860 1930 2010 2130 2280 2420
Tractor Power hp 60-65 70-75 75-80 85-90 90-100 110-120 120-130 130-140 140-150 150-160 160-170
