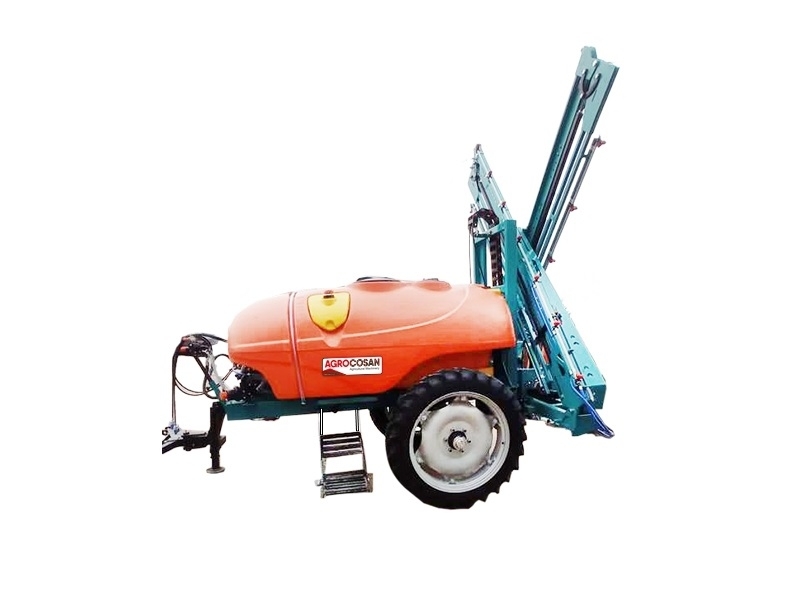

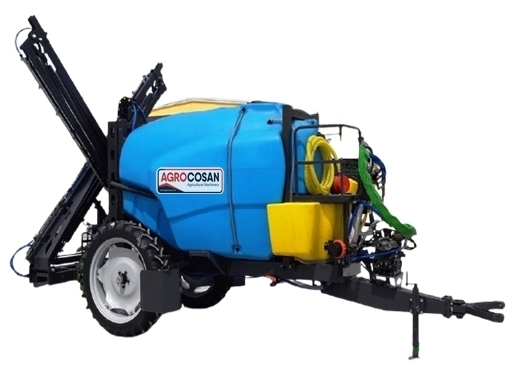

Trailed High Whell Field Sprayer HW
- Polyester (reinforced) or polyethylene tank Pressure is provided by diaphragm pumps Pump is moving from the PTO Brass and handcuffed nozzles
- Easily cleanable water filter
- Easily adjustable and usage
- High efficiency
- Clean water tank
- Pressure regulation
- Level indicator on the tank
- Easily mountable to tractor drawbar
Type |
HW 1000 |
HW 1600 |
HW 2000 |
Pump Model (I/min) |
C96 |
C96 |
C96 |
Control Panel |
VDR 50 |
VDR 50 |
VDR 50 |
Boom Length(m) |
12-16 |
12-16 |
12-16 |
Noozle Type |
Brass-Plastic |
Brass-Plastic |
Brass-Plastic |
Noozle Piece |
24 |
24 |
24 |
Width (cm) |
270 |
270 |
270 |
Lenght (cm) |
347 |
350 |
385 |
Height (cm) |
225 |
225 |
225 |
Bum Height Adjustment |
Hydraulic |
Hydraulic |
Hydraulic |
Required Power (BG) |
50 |
50 |
50 |
Working Transfer (d/d) |
540 |
540 |
540 |
Weight (kg) |
782 |
820 |
832 |
